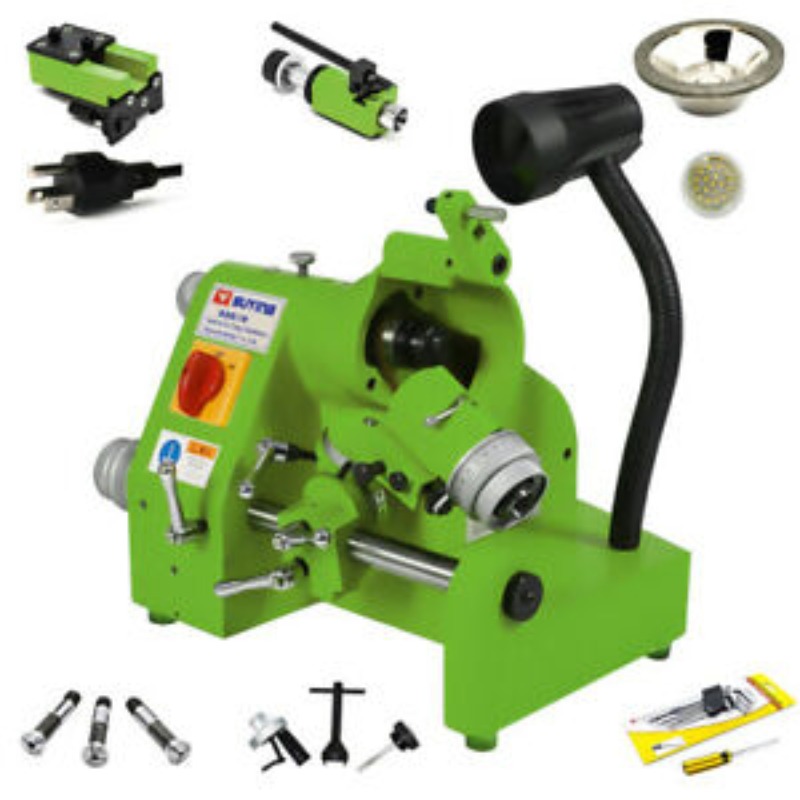

For grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various shapes such as radiused cutters or negative taper angle of cutters. The universal index head is provided at 24 positions so that any particular angel or shape can be obtained, free 3600 or 100 rotation is allowed for grinding End Mills. Twist Drill. Lathe Tools, only replace the attachment to the index head without any complex setup.

Technical Date

Max. Collet capacity Ø18mm

Max. Grinding dia. Ø25mm

Taper angle 0˚- 180˚

Relief angle 0˚- 45˚

Negative angel 0˚- 26˚

Grinding spindle 3600 r.p.m.

Cup grinding wheel 100x50x20mm

Motor 1/3Hp 220V50/60Hz, please notify volt & phase

Net weight 45kgs

G.W.: 60kgs

Machine dimensions (L x W x H ) 45x40x35cm

Packing dimensions (L x W x H ) 55x45x47cm

Standard Accessory Included

                   1.    Wheel dresser with diamond…..1pc

                   2.    Wheel flange (mounted).………1pc

                   3.    Grinding wheel………………...1pc

                   4.    Collect Ø4,6,8,10,12mm……….5pc

                   5.    Aligning flinger………………..1pc

                   6.    Drive belt (U2-B)………………1pc

                   7.    Lock pin………………………..1pc

                   8.    Tools…………………………...1set
